La máquina se utiliza principalmente para las operaciones de mezcla, granulación, secado y recubrimiento de gránulos “Top Spraying”, etc. de material en polvo en
industria farmacéutica, industria alimentaria, industria química, etc. Como gránulos de tabletas, gránulos para beber de rápida resolución, condimentos.
★La máquina está diseñada y fabricada de acuerdo con JB20014-2004 《Granulador de lecho fluido en medicina》
Características del equipo
★Mezcla-granulación-secado en un solo paso.
★Adopción del sistema de bolsas filtrantes de doble cámara, eliminando completamente el polvo.
★La adopción de una boquilla multifluido garantiza que el gránulo formado sea uniforme y que el contenido de polvo sea muy bajo.
★Puede elegir un diseño a prueba de explosiones de 2 barras
★Diseñado, fabricado y diseñado por GMP
|
Specification Item |
5 |
15 |
30 |
60 |
120 |
200 |
300 |
500 |
|
Capacity (Kg / batch) |
5 |
15 |
30 |
60 |
120 |
200 |
300 |
500 |
|
Scope of application for liquid(g/cm3) |
<1.3 |
|||||||
|
Material yield rate (%) |
≥99 |
|||||||
|
Qualified rate of end products (%) |
≥85 |
|||||||
|
Water content of end products (%) |
Water content of end products (%) |
|||||||
|
Granules performance index |
Confirm to 《Chinese pharmacopoeia》2000 edition |
|||||||
|
Container volume (L) |
22 |
45 |
100 |
220 |
420 |
670 |
1000 |
1500 |
|
Diameter(mm) |
500 |
550 |
700 |
1000 |
1200 |
1400 |
1600 |
1800 |
|
Power of fan (Kw) |
3 |
5.5 |
7.5 |
11 |
18.5 |
22 |
30 |
45 |
|
Power of supply liquid motor (Kw) |
0.37 |
|||||||
|
Pressure of steam (Mpa) |
0.4-0.6 |
|||||||
|
Consumption of steam (Kg/h) |
18 |
35 |
60 |
120 |
140 |
180 |
310 |
400 |
|
Pressure of compressed air (Mpa) |
0.4-0.6 |
|||||||
|
Consumption of compressed air (m3/min) |
0.3 |
0.6 |
0.9 |
0.9 |
0.9 |
1.1 |
1.1 |
1.5 |
|
Working temperature(℃) |
Normal temperature -120℃ could adjust |
|||||||
|
Noise (DB) |
Installed separated with fan ≤75 |
|||||||
|
Executive standard |
JB20045-2005 |
|||||||
|

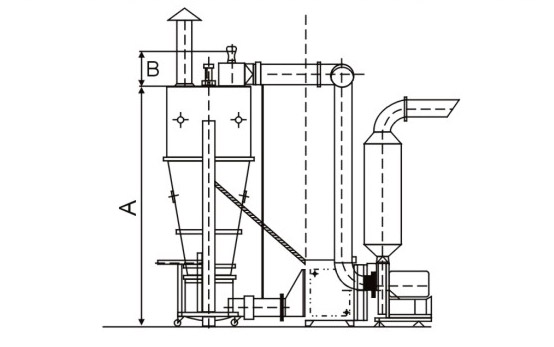

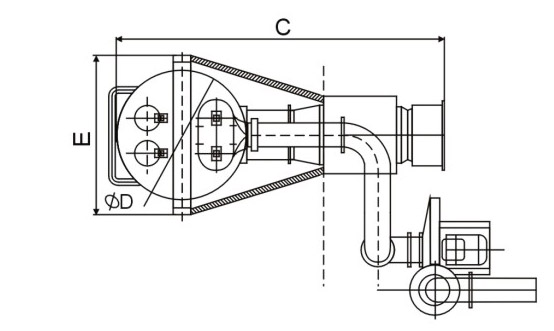

Overall dimension of machine (L×W×H) |
Pls refer to installation drawing or customer`s room |
|||||||
